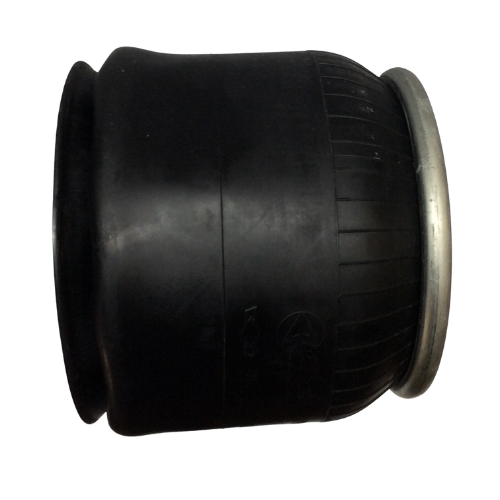

Kenworth / Peterbilt Air Spring – AB1DK23I-8813 (Replaces Firestone 1T15M-4, Goodyear 1R12-1204)

Applications    Kenworth Peterbilt
Type    Rolling Lobe
Air Spring Brand    Automann Phoenix
Firestone Bellows#    1T15M-4
Design Height (In)    11.00
Bottom Plate Type    Plastic
Top Plate Hole/Stud Qty    3
Top Plate Dia. (A)    9.00
Top Plate C to C Dia. (B)    6.20
Bottom Plate Hole/Stud Qty    1
Bottom Plate Dia. (C)    9.53
Min. Height    7.10
Max. Height    18.80
Max. Dia.    12.60

Cross Reference#-1R12-1204, 65990, C811003, C816000
