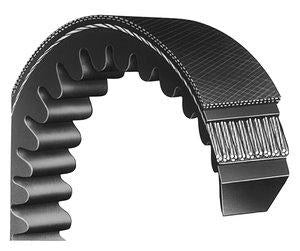

The Dayco 22610 is a high-performance, top-cog V-belt designed for demanding automotive, truck, and diesel engine accessory drive applications. It features a flexible double-cog construction and durable synthetic rubber compound to provide reliable power transfer, flexibility around smaller pulleys, and long service life.
With a 61-inch effective length, 0.69-inch top width, and 38° belt angle, the Dayco 22610 is an excellent replacement for a wide range of heavy-duty and commercial vehicle applications.
Key Features
- Genuine Dayco replacement V-belt
- Top-cog/double-cog construction
- 61.00" effective length
- 61.64" outside circumference
- 0.69" (11/16") top width
- 38° belt angle
- Synthetic rubber compound
- Polyester reinforcement cords
- Designed for flexibility and efficient power transfer
- Suitable for demanding diesel and accessory drive applications
- Meets SAE J636 and SAE J637 standards
Specifications
-
Brand: Dayco
-
Part Number: 22610
-
Industry Number: 15A1550
-
Belt Type: V-Belt
-
Construction: Double Cog / Top Cog
-
Effective Length: 61.00"
-
Outside Circumference: 61.64"
-
Top Width: 0.69"
-
Angle: 38°
-
Material: Synthetic Rubber Compound
-
Color: Black
-
Banded: No
-
Operating Temperature: -35°F to 175°F
-
Standards: SAE J636, SAE J637
-
UPC: 038244238422
Cross Reference / Interchange Numbers
- Cummins: 178632, 178636
- International/Navistar: 1653194-C1, 1653195-C91, 1653196-C91, 1654420-C91, 1655420-C91
- Freightliner: 23-10001-078
- Case: A76745
- John Deere: AT28557, R87151, T30107
- Mitsubishi: MPMF8600
- Gates: TR22607
- Goodyear: 22607
- Continental: 22610
Always verify belt dimensions and application before ordering. Cross-reference numbers are provided for identification purposes and may vary by application.
