Air Spring-AB1DK20D-9422
$132.00
Skip to product information
Air Spring-AB1DK20D-9422
$132.00
Applications Kenworth
Type Rolling Lobe
Air Spring Brand Automann Phoenix
Firestone Bellows# 1T15L-1.5, 1T15KW-1.5
Bottom Plate Type Plastic
Top Plate Hole/Stud Qty 2

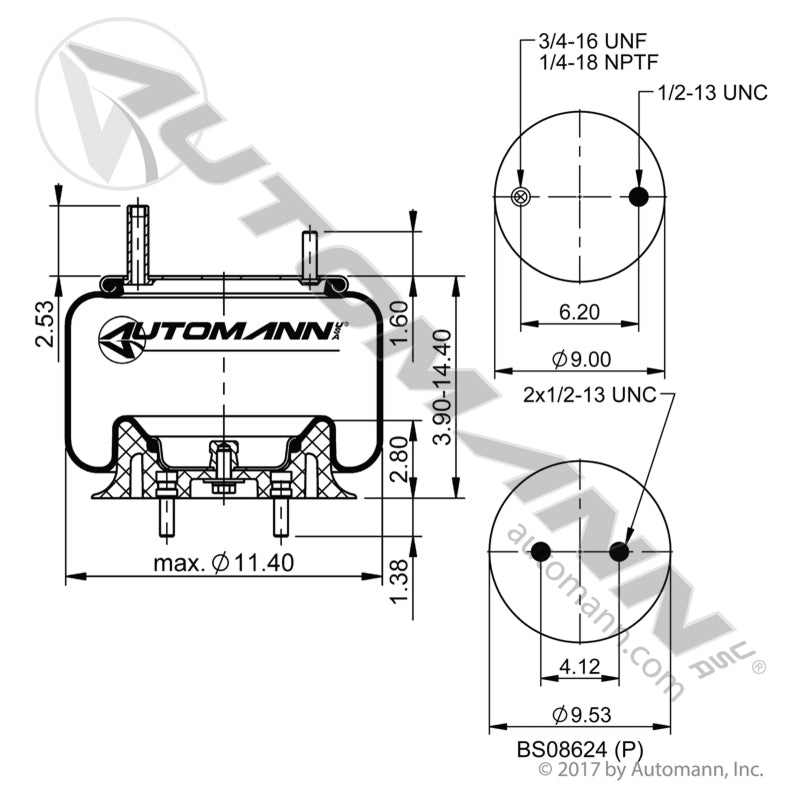

Top Plate Dia. (A) 9.00
Top Plate C to C Dia. (B) 6.20
Bottom Plate Hole/Stud Qty 2
Bottom Plate Dia. (C) 9.53
Bottom Plate C to C Dia. (D) 4.12"
Min. Height 3.90
Max. Height 14.40
Max. Dia. 11.40
Cross Reference-Firestone W01-358-9422, Goodyear 1R11-028, Hendrickson S-13032
