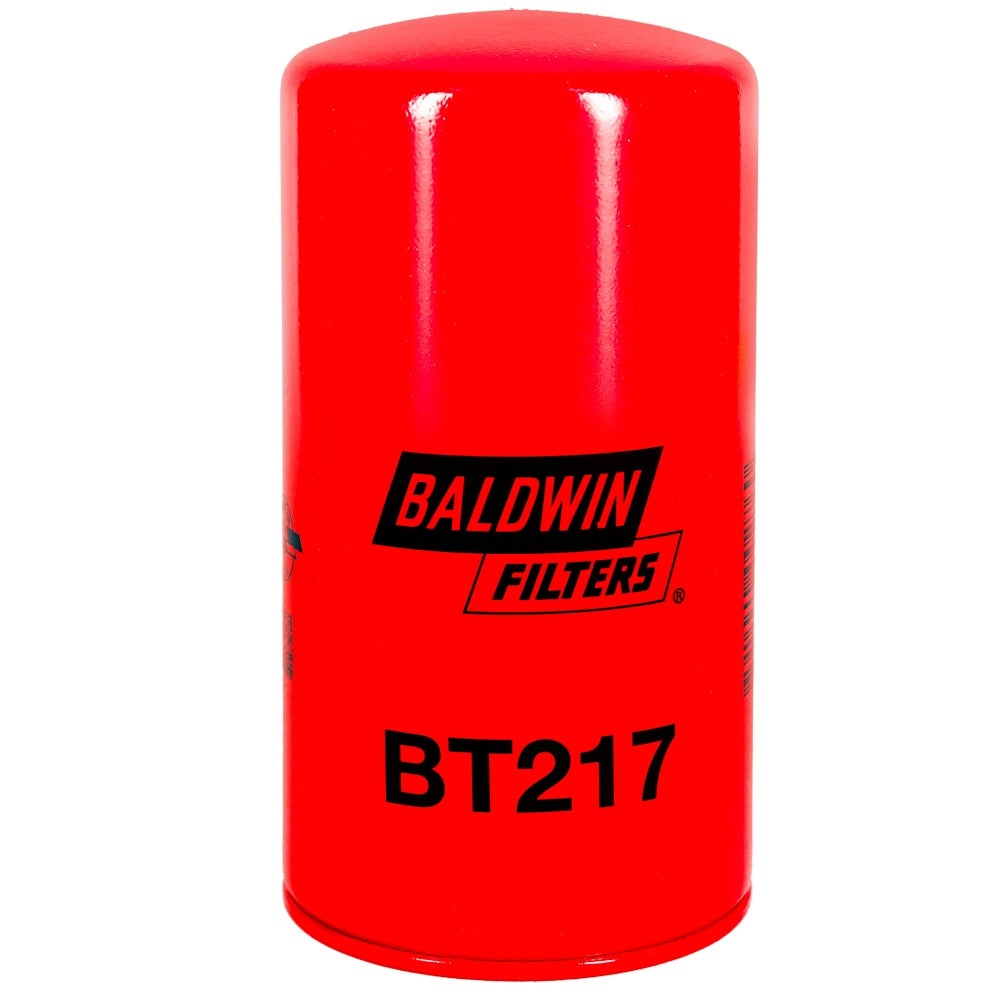

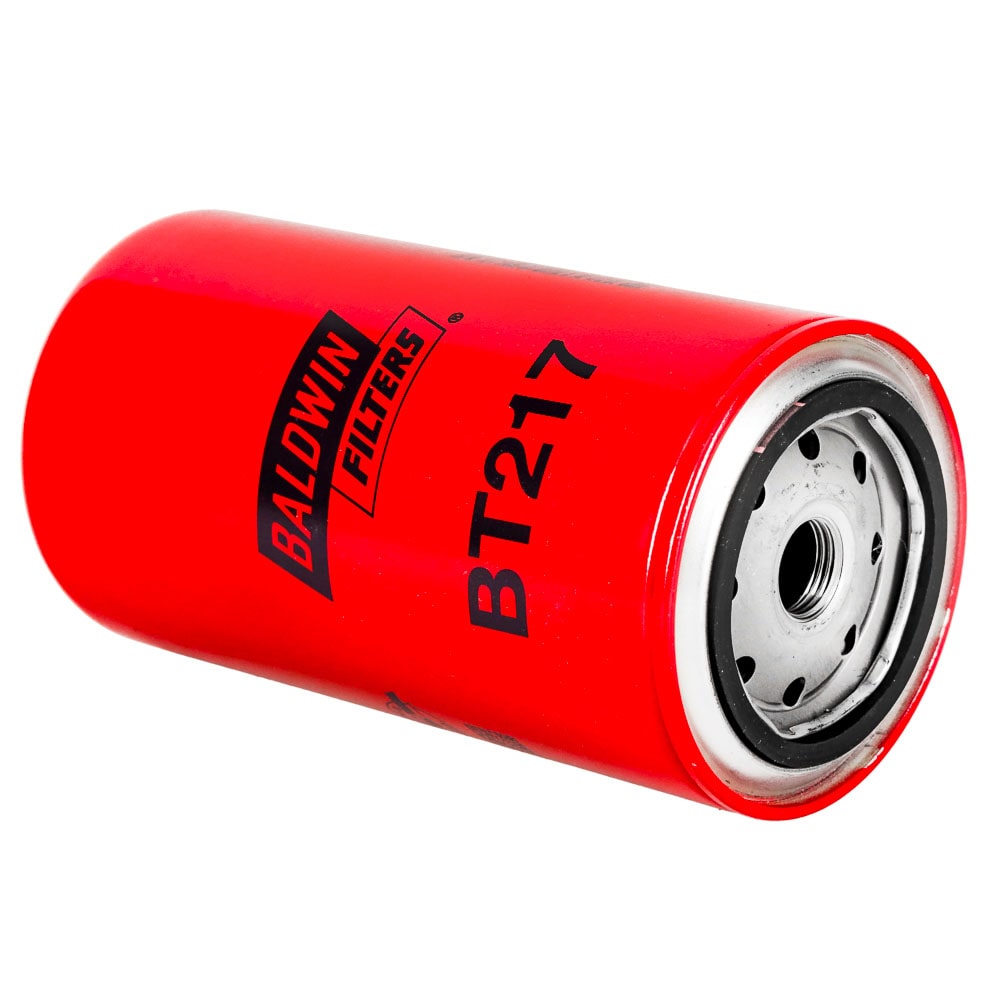

Baldwin BT217 Engine Oil Filter Full-Flow Lube Spin-On 3/4"-16 Thread 7-1/8"
9 in stock
The Baldwin BT217 is a full-flow lube spin-on oil filter engineered to help protect engine components by filtering contaminants from circulating lubricating oil.
This heavy-duty filter features cellulose filter media, an 8 PSID bypass valve, anti-drainback valve, standpipe, and G381-A integral gasket. The BT217 uses a 3/4"-16 mounting thread and measures approximately 7-1/8 inches in height with a 3-11/16-inch outside diameter.
The BT217 is listed for use with Hanomag and Hyster equipment and Transicold refrigeration units, and Baldwin documentation also lists BT217 for certain Transicold applications. Always verify the part number and filter specifications against your equipment before ordering.
| Specification | Details |
|---|---|
| Brand | Baldwin Filters |
| Part Number | BT217 |
| Product Type | Engine Oil Filter |
| Filter Design | Spin-On |
| Filter Construction | Full-Flow Lube |
| Thread Size | 3/4"-16 |
| Outside Diameter | 3-11/16" / 93.7 mm |
| Overall Height | 7-1/8" / 181 mm |
| Nominal Filter Rating | 23 micron |
| Absolute Filter Rating | 45 micron |
| Bypass Valve | 8 PSID |
| Anti-Drainback Valve | Yes |
| Standpipe | Yes |
| Integral Gasket | G381-A |
| Media | Cellulose |
| Compatible Fluid | Engine Oil |
| Flow Type | Full Flow |
| Engine Types | Diesel / Gasoline |
| Compatible Equipment | Hanomag, Hyster, Transicold |
| Country of Origin | USA* |
| UPC | 791440002760 |
*Country-of-origin information can vary by manufacturing or distribution circumstances.
The Baldwin BT217 is associated with:
Commonly listed replacement or interchange numbers include:
These numbers are provided for cross-reference purposes only and do not necessarily indicate that the other manufacturer products are manufactured by or affiliated with Baldwin.
