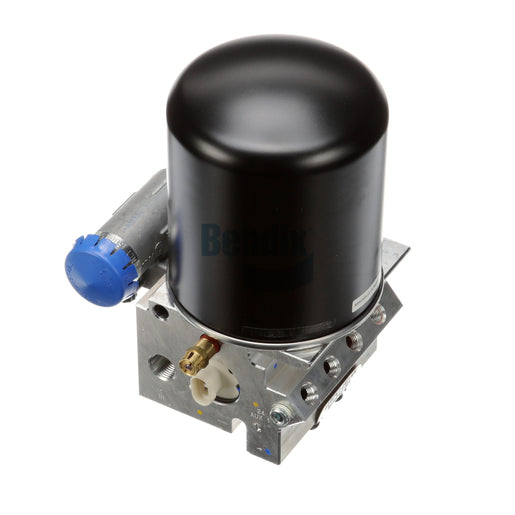

Bendix Air Dryer-801266

Genuine Bendix AD-IS air dryer.

Air Dryer Type- Stand-Alone
Mounting- Mount to Purge Reservoir (Not Included)
Supply Port- 1/2-14 NPT
Governor Unloader Port- 1/8-27 NPT
Governor Reservoir Port- 1/8-27 NPT (Plugged)
PRI Delivery Port- 21 1/4-18 NPT
PRI Delivery Opening Pressure- 103 PSI
SEC Delivery Port 22- 1/4-18 NPT
SEC Delivery Opening Pressure- 109 PSI
AUX 1 Delivery Port 1- 1/4-18 NPT (Plugged)
AUX 1 Delivery Port 2- 1/4-18 NPT
AUX 1 Delivery Port 3- 1/4-18 NPT
AUX 1 Delivery Port 4- 1/4-18 NPT
AUX 1 Delivery Opening Pressure- 109 PSI
AUX 2 Delivery Port- 1/4-18 NPT
AUX 2 Delivery Opening Pressure- 109 PSI
Purge Exhaust Port- Standard
Purge Valve Type- Hard Seat
Safety Valve Opening Pressure- 153 PSI
Heater / Thermostat Rating- 12V / 90W
Heater Connector Type- Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Heater Connector Color- White
Cartridge Type- Standard
Cartridge Thread- M39 x 1.5-6H RH
Clearance to Remove Cartridge- 1.00 IN
Governor Included- Yes
Governor Type- Non-Adjustable
Cut-in Pressure- 110 PSI
Cut-out Pressure- 130 PSI
Pressure Protection Valve Configuration- 4 in Parallel
Maximum Inlet Temperature- 160 °F (71 °C)
Minimum Operating Temperature- -40 °F (-40 °C)
Cautionary Note(s)- Pressure protection valve configs are not interchangeable.
