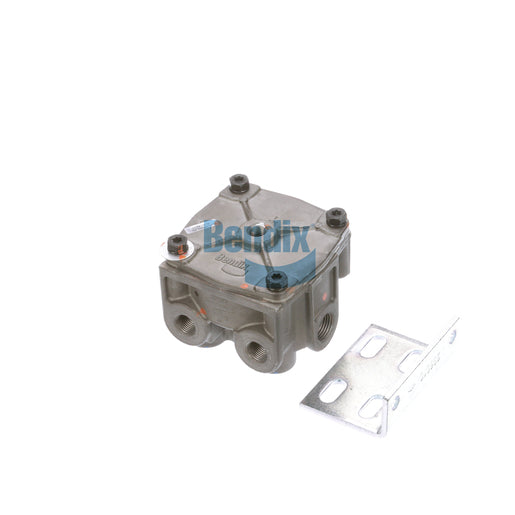

Bendix R12 Relay Valve-065303

Genuine Bendix R-12 air brake relay valve part number 065303.

Mounting- .96 IN x .40 IN Slot (4x)
Mounting Bracket Location- Loose in Box
Body Configuration- 2 SUP / 4 DEL (2H + 2V)
Supply Port 1- 1/2-14 NPT
Supply Port 2- 1/2-14 NPT
Control / Secondary Service Port- 1/4-18 NPT
Delivery Port 1- 3/8-18 NPT
Delivery Port 2- 3/8-18 NPT
Delivery Port 3- 3/8-18 NPT
Delivery Port 4- 3/8-18 NPT
Exhaust Port- Dust Shield
Crack Pressure- 4.0 PSI
Maximum Operating Temperature- 200 °F (93 °C)
Minimum Operating Temperature- -40 °F (-40 °C)
