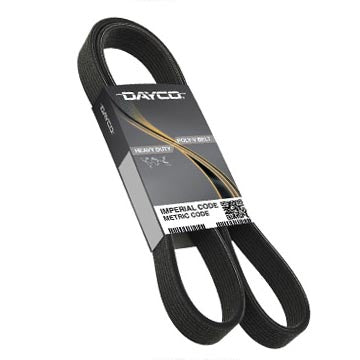

The Dayco 5080695 Poly Rib Gold Label Belt is built for heavy-duty applications where reliable accessory drive performance is essential. Its EPDM, aramid-reinforced construction is designed to withstand heat, high torque, and demanding operating conditions.
With 8 ribs, a 69.50-inch effective length, and a 1.10-inch top width, this belt is commonly used for accessory drive systems including fan, alternator, water pump, and other engine-driven components.
The Dayco 5080695 is also identified as 8PK1765 in metric belt sizing.
Specifications
-
Brand: Dayco
-
Part Number: 5080695
-
Product Type: Poly Rib / Serpentine Belt
-
Belt Series: Gold Label
-
Rib Count: 8
-
Metric Size: 8PK1765
-
Effective Length: 69.50 inches / 1,765.3 mm
-
Outside Circumference: 70.13 inches / 1,781.3 mm
-
Top Width: 1.10 inches
-
Thickness: Approximately 5/32 inch
-
Cross Section: K-Section
-
Material: EPDM, aramid reinforced
-
Rib Profile: Straight rib
-
Color: Black
-
Application: Heavy-duty accessory drive
-
VMRS: 045002073
Common Applications
The 5080695 is used across a range of heavy-duty truck, bus, and equipment applications. Listed applications include International ProStar, International 8500/8600 TranStar, Freightliner FL50/FL60/FL70/FL80, Sterling Acterra, Volvo VN, Peterbilt 365, and various bus and vocational applications. Always verify belt routing and application before ordering.
Cross-Reference Numbers
Common cross-reference numbers include:
-
Continental: 4080695 / 4080695X
-
Gates: K080694 / K080694HD
-
ACDelco: 8K694 / K080694HD
-
Bando: 695K8 / 8PK1765
-
Cummins: 3289246 / 3289257 / 3289941 / 3926856 / 3955170 / 5256751 / 4933083
-
Caterpillar: 298-5872 / 347-9000 / 357-2890 / 839-7911
-
Navistar: 144671C1 / 1675398C1 / 1830728-C1 / 1830728-C2 / 3578997-C1
-
Freightliner: 01-23415-020 / 01-23415-025 / 01-23415-098 / 01-23415-101
-
Volvo: 20430615 / 3968231 / 8397911
-
Thermo King: 78-1067
-
Goodyear: 1080695 / 4080695
