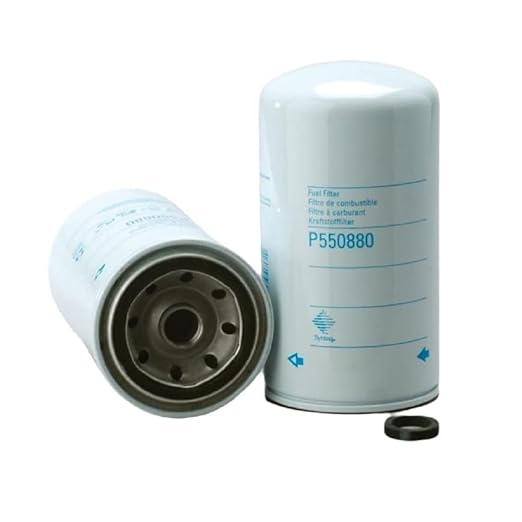

Donaldson P550880 Fuel Filter – Spin-On Secondary, 5 Micron, M20 x 1.5
8 in stock
Keep your diesel fuel system protected with the Donaldson P550880 Fuel Filter. This secondary-stage spin-on filter uses meltblown filtration media to capture fine fuel contaminants and provides 99.9% efficiency at 5 microns when tested to SAE J1985. Its durable spin-on design allows for straightforward filter replacement during routine maintenance.
The P550880 is commonly used across heavy-duty, agricultural, construction, and industrial diesel applications. It is listed for applications including Case and Cummins systems and cross-references to several popular aftermarket filter numbers. Always verify dimensions and application before ordering.
| Specification | Detail |
|---|---|
| Brand | Donaldson |
| Part Number | P550880 |
| Filter Type | Fuel Filter |
| Filter Style | Spin-On |
| Filter Stage | Secondary |
| Media Type | Meltblown |
| Filtration | 5 Micron |
| Efficiency | 99.9% |
| Test Standard | SAE J1985 |
| Thread Size | M20 x 1.5 |
| Outer Diameter | 3.66 in / 93 mm |
| Length | 6.85 in / 174 mm |
| Gasket OD | 2.83 in / 72 mm |
| Gasket ID | 2.44 in / 62 mm |
| UPC | 742330197462 |
Specifications are supported by published Donaldson product data.
