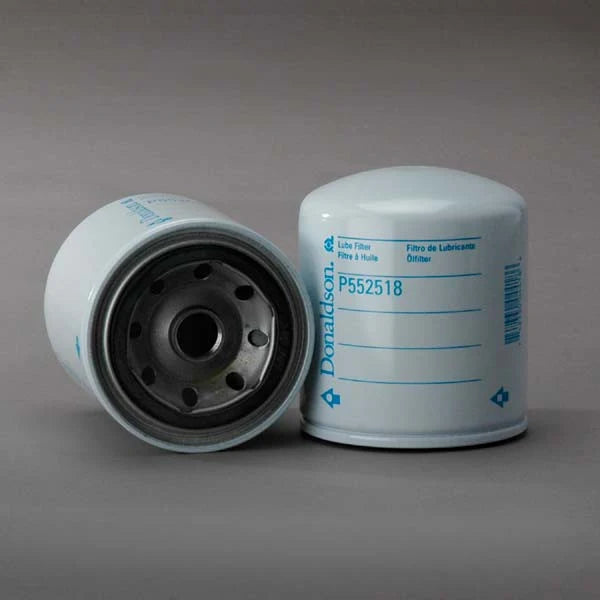

Donaldson P552518 Lube Filter, Spin-On Full-Flow – 3/4-16 UN Thread, 3.66" OD, 4.21" Length
2 in stock
The Donaldson P552518 is a heavy-duty spin-on, full-flow lube oil filter designed to help protect engines by removing contaminants from circulating engine oil. Donaldson engineered this filter with durable components and high-capacity filtration media to provide dependable filtration and engine protection under demanding operating conditions.
The P552518 features a 3/4-16 UN mounting thread, integrated anti-drainback and bypass valves, and cellulose filter media. It is rated at 99% efficiency at 40 microns according to SAE J1858, helping capture wear-causing contaminants before they can circulate through critical engine components.
Its spin-on design allows for straightforward installation and routine maintenance, making the P552518 a dependable replacement for a wide range of heavy-duty engine applications.
| Specification | Details |
|---|---|
| Brand | Donaldson |
| Part Number | P552518 |
| Product Type | Lube / Engine Oil Filter |
| Filter Style | Spin-On |
| Filter Type | Full-Flow |
| Outer Diameter | 3.66" (93 mm) |
| Length | 4.21" (107 mm) |
| Thread Size | 3/4-16 UN |
| Gasket OD | 2.80" (71 mm) |
| Gasket ID | 2.40" (61 mm) |
| Media Type | Cellulose |
| Efficiency | 99% @ 40 micron |
| Efficiency Test Standard | SAE J1858 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Setting – LR | 7 psi (0.5 bar) |
| Bypass Setting – HR | 12 psi (0.8 bar) |
| Collapse/Burst Rating | 100 psi (6.9 bar) |
Specifications are based on Donaldson's published product data.
The Donaldson P552518 is cross-referenced to a number of OEM and aftermarket filter numbers, including:
Important: Cross-reference numbers are provided for identification and interchange reference only. Always verify the filter specifications and application before installation.
The P552518 is used across a variety of engine, construction, agricultural, and commercial equipment applications. Listed applications/cross-references include equipment from manufacturers such as:
Application fitment can vary by engine and equipment configuration. Verify the original filter number and specifications before ordering.
