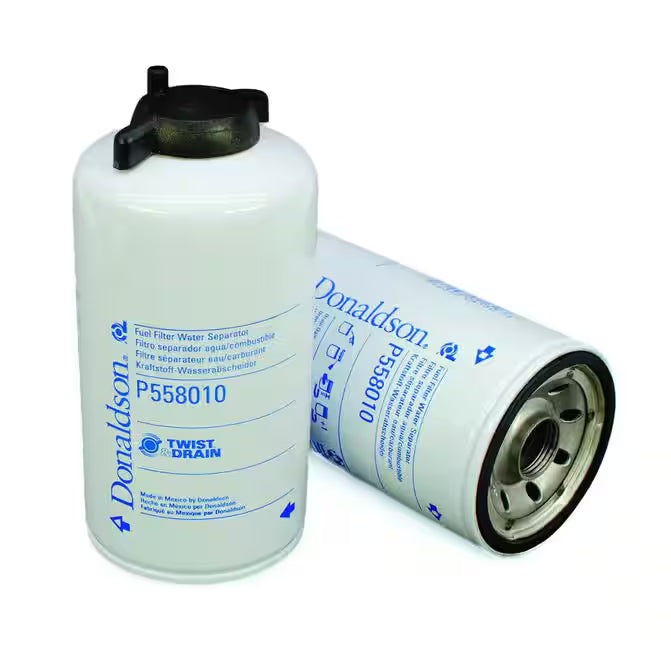

Donaldson P558010 Fuel Filter Water Separator – Twist&Drain Spin-On
4 in stock
Protect your diesel fuel system with the Donaldson P558010 Fuel Filter Water Separator. This Twist&Drain spin-on filter is designed to remove water and particulate contaminants from diesel fuel, helping provide cleaner fuel and reliable protection for fuel-system components.
The P558010 features 99% filtration efficiency at 20 microns and 96% emulsified-water efficiency, making it a dependable choice for demanding diesel applications. Its spin-on design allows for straightforward installation and maintenance, while the integrated water-separation capability helps reduce the risk of water-related fuel-system problems.
| Specification | Details |
|---|---|
| Brand | Donaldson |
| Part Number | P558010 |
| Product Type | Fuel Filter / Water Separator |
| Filter Style | Spin-On |
| Series | Twist&Drain |
| Media | Cellulose |
| Micron Rating | 20 Micron |
| Efficiency | 99% |
| Emulsified H2O Efficiency | 96% |
| Thread Size | 1"-12 UN |
| Outside Diameter | 3.66" (93 mm) |
| Length | 7.61" (193.2 mm) |
| Gasket OD | 3.39" (86.2 mm) |
| Gasket ID | 3.05" (77.5 mm) |
| Collapse Burst | 75 psi / 5.2 bar |
| Primary Application | Detroit Diesel 23512317 |
| UPC | 742330045503 |
Specifications are based on Donaldson product data and supporting distributor listings.
The Donaldson P558010 cross-references with numerous replacement and OEM numbers, including:
Always verify the part number and application before ordering.
