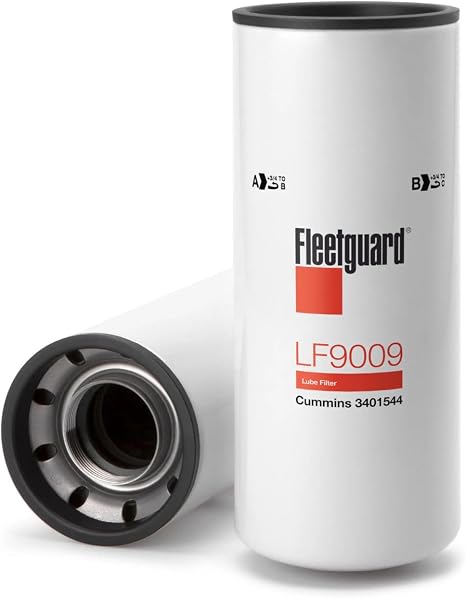

Fleetguard LF9009 Heavy-Duty Spin-On Combination Lube Oil Filter
7 in stock
Genuine Fleetguard LF9009 spin-on combination lube filter engineered for heavy-duty diesel engine applications. The LF9009 combines full-flow and bypass filtration in a single filter housing using Fleetguard StrataPore media to provide effective contaminant control while maintaining oil flow. It is an upgrade from the Fleetguard LF3000 and is designed to meet or exceed applicable OE requirements.
| Specification | Details |
|---|---|
| Brand | Fleetguard |
| Part Number | LF9009 |
| Product Type | Lube Filter, Spin-On |
| Filter Style | Combination Full-Flow / Bypass |
| Media Type | StrataPore |
| Thread Size | 2.25-12 UNF 2B |
| Largest Outside Diameter | 4.68 in / 118.87 mm |
| Gasket Inside Diameter | 4.01 in / 101.85 mm |
| Gasket Outside Diameter | 4.68 in / 118.87 mm |
| Filter Height | 11.88 in / 301.76 mm |
| Overall Height | 11.82 in / 300.28 mm |
| Rated Flow | 27.74 GPM / 105 L/min |
| Primary Particle Efficiency | 30 micron @ 98.7% |
| Pressure Valve | No |
| Hydrostatic Burst Minimum | 253.75 PSI / 1,750 kPa |
| Efficiency Test Standard | CECO 10765 |
Specifications are from Fleetguard's published LF9009 data.
Fleetguard: LF9009, LF3000, XLF7000
Cummins: 3401544, 3318853, 3825970, 1220856, 5297157, 5476383, 5586832, XLF75000
Baldwin: BD7309, BK6032
Donaldson: DBL7300, P553000
WIX: 51748, 51748MP, 51748XD
Luber-finer: LFP3000, LFP3000XL
FRAM: HPH6349, HPH6349A, HPH6349AFP
Carquest: 84500, 85748XD
MANN-FILTER: WP12121
Hengst: H300W07
NAPA: 1748XD, 7500
John Deere: AT193242, RE44647, PMLF9009
Case / Case IH: 366700A1, 84465096, 84485647, 907101T1
Komatsu: 6742014540, 6742014120, CULF9009
Volvo: 12969457, 14503824, 22497303
Doosan: 65055105023B, 97400023, 974000233
Atlas Copco: 2653161527, 5580006641
Cross-reference numbers are provided for identification and application research. Always verify the part number and specifications against the equipment manufacturer's requirements before ordering.
The LF9009 is used across a range of heavy-duty diesel and off-road equipment applications. Fleetguard's equipment database includes applications such as Freightliner M2 106 with the Cummins L9 and Freightliner 114SD applications.
Commonly associated engine families and applications include:
Important: Application coverage varies by engine configuration, year and equipment model. Confirm fitment using the existing filter part number, engine model and manufacturer's application information before purchase.
