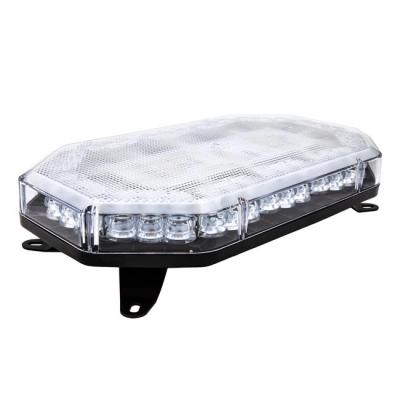

The Maxxima M20486YCL is a compact 14-inch LED emergency warning mini-lightbar designed for trucks, trailers, work vehicles, tow trucks, service vehicles, construction equipment, and other applications requiring high-visibility warning lighting.
This lightbar features 36 high-output amber LEDs, a clear polycarbonate lens, and 10 selectable flash patterns. It operates on both 12V and 24V DC systems and includes magnetic and surface-mounting options for flexible installation. The included 15-foot power cable features a cigarette-lighter plug with on/off and pattern-selection controls.
The M20486YCL is SAE J845 Class 1 rated and provides a highly visible warning signal for roadside, work-zone, emergency, and commercial vehicle applications.
Features
-
Maxxima part number: M20486YCL
- 14" LED warning mini-lightbar
- Amber LED warning light
- Clear polycarbonate lens
- 36 amber LEDs
- 10 selectable flash patterns
- 12/24V DC operation
- SAE J845 Class 1 rated
- Magnetic and surface mounting options
- 15-foot power cable
- Cigarette-lighter plug with controls
- Durable construction
- 5-year manufacturer warranty
Specifications
-
Brand: Maxxima
-
Part Number: M20486YCL
-
Light Color: Amber
-
Lens Color: Clear
-
LEDs: 36
-
Voltage: 12/24V DC
-
Flash Patterns: 10
-
Length: 14.00"
-
Width/Depth: 1.75"
-
Overall listed height: 8.25" depending on measurement orientation
-
Mounting: Magnetic & surface mount
-
Cable: 15 ft.
-
Connector: Cigarette-lighter plug
-
SAE Rating: J845 Class 1
-
Legal Heading: W3-1
-
Lens Material: Polycarbonate
-
IP Rating: IP67
Common Applications
Ideal for:
- Semi trucks and tractor-trailers
- Work trucks
- Tow trucks
- Service vehicles
- Utility vehicles
- Construction equipment
- Snow plows
- Emergency vehicles
- Fire trucks
- Trailers
- Pickup trucks
- Agricultural and industrial equipment
