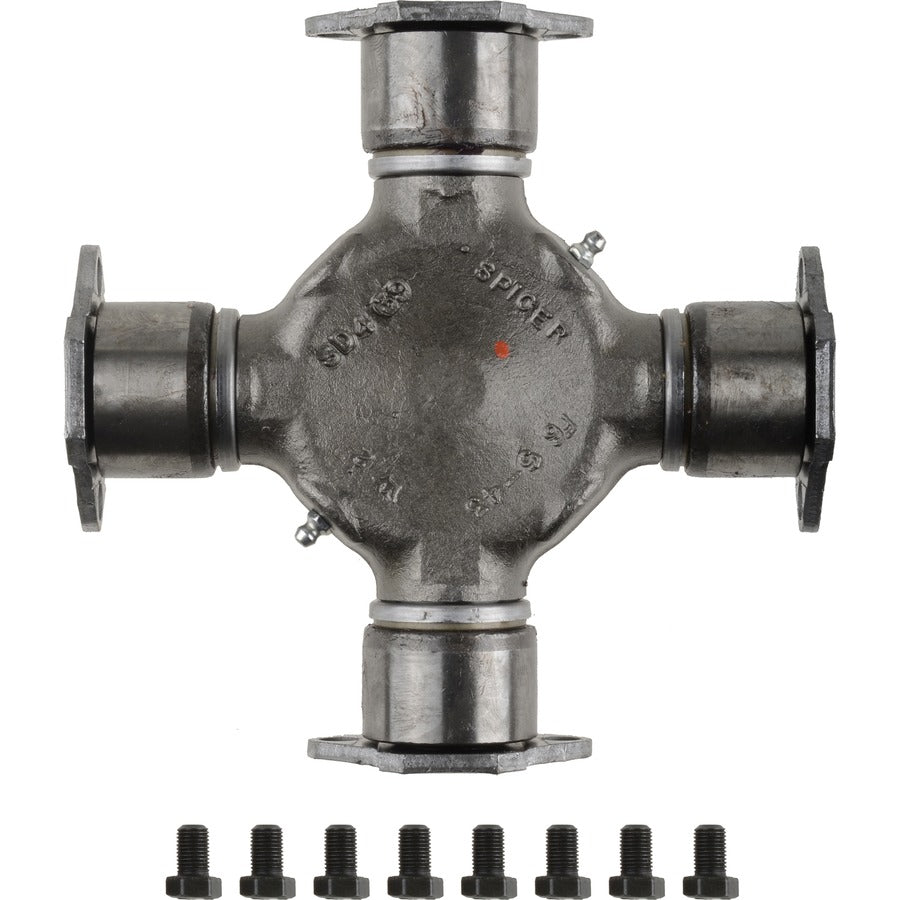

Spicer 5-281X 1810 Series Universal Joint
4 in stock
The Spicer 5-281X is a heavy-duty 1810 Series universal joint (U-joint) designed for commercial truck and heavy-duty drivetrain applications. This greaseable, full-round style U-joint is engineered for durability and dependable performance in demanding driveline service.
The 5-281X features 1.938-inch bearing caps, a 7.547-inch bearing plate dimension, and a grease fitting located on the side of the cross. It is commonly used in driveline applications for Freightliner, International, Mack, Volvo, Ford, and other heavy-duty vehicles.
Cross-reference numbers include:
Always verify dimensions and application before ordering.
| Specification | Details |
|---|---|
| Brand | Spicer / Dana |
| Part Number | 5-281X |
| Series | 1810 |
| Product Type | Universal Joint / U-Joint |
| Style | Full Round / Bearing Plate |
| Greaseable | Yes |
| Bearing Cap Diameter | 1.938 in. |
| Bearing Plate Dimension | 7.547 in. |
| Bearing Bolt Spacing | Approx. 2.437–2.438 in. |
| Grease Fitting | Side of Cross |
| Material | Steel |
