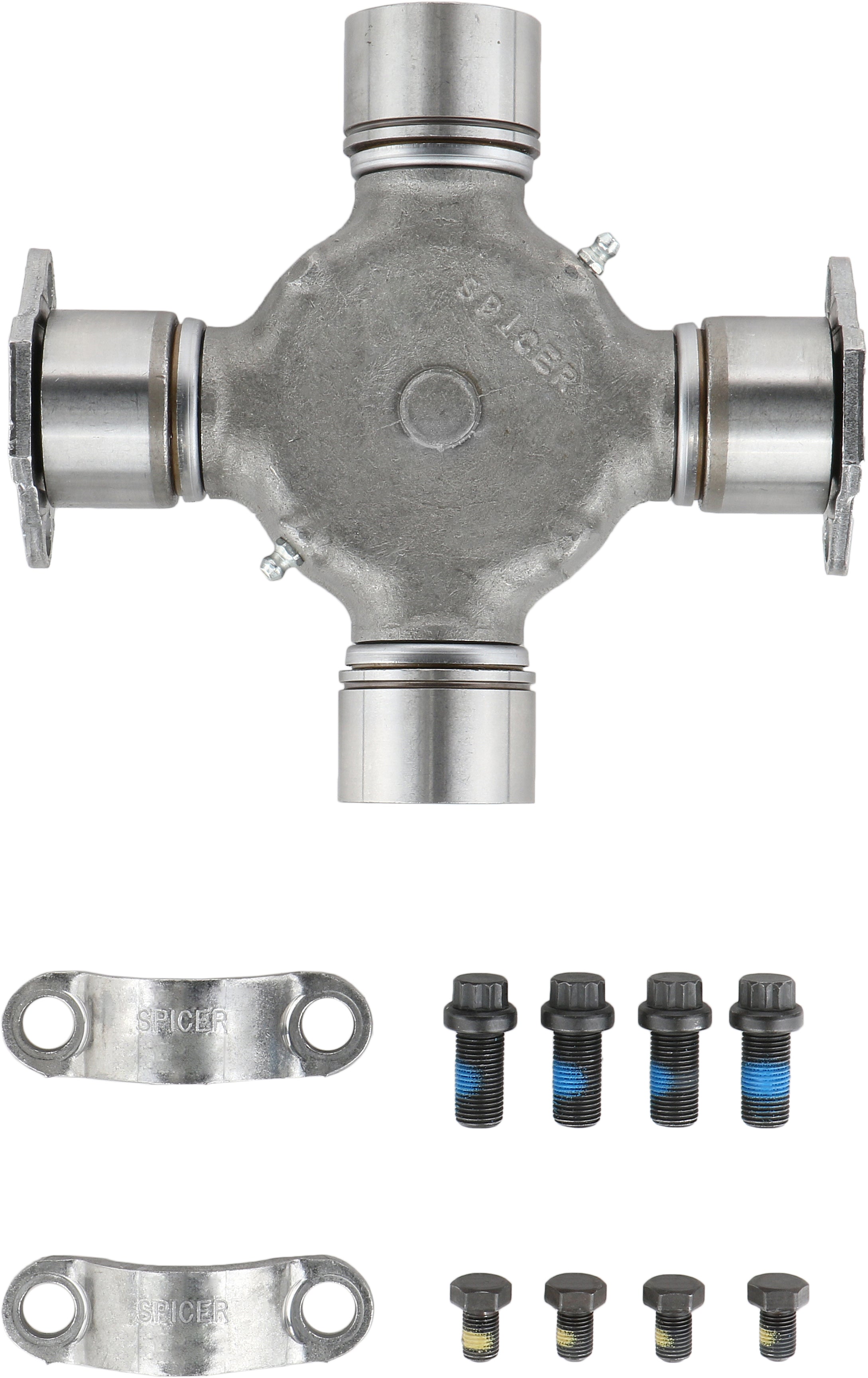

Spicer 5-676X 1810 Series Half-Round Greasable Universal Joint

The Spicer 5-676X is a genuine Spicer/Dana 1810 Series universal joint designed for heavy-duty driveshaft applications. This half-round (HR) style U-joint features a bearing plate and round cap configuration and is greaseable for routine driveline maintenance.

The 5-676X includes the necessary mounting hardware and is designed for reliable power transfer in demanding commercial truck and heavy-duty applications. Always verify dimensions and yoke configuration before ordering.

Features

• Genuine Spicer/Dana universal joint
• 1810 Series
• Half-round (HR) style
• Greasable design
• Bearing plate x round cap configuration
• 1.938" bearing cap diameter
• 7.547" bearing cap-to-cap dimension
• Mounting hardware included
• Side grease fitting
• Heavy-duty steel construction

Specifications

• Brand: Spicer / Dana
• Part Number: 5-676X
• Series: 1810
• Type: Universal Joint / U-Joint Kit
• Style: Half Round (HR)
• Bearing Cap Diameter: 1.938"
• Lock-Up / Bearing Plate Dimension: 7.547"
• Distance Between Bolts: 2.437"
• Greaseable: Yes
• Grease Fitting: Side of cross
• Hardware Included: Yes
• Material: Steel
• VMRS Code: 024002046
• UPC: 023913121822

Common Cross References

• Spicer 25-676X
• Spicer 15-676X
• Spicer 2104-5676X
• Neapco 6-0676
• Meritor M676X / CP676X
• Moog 878
• Freightliner SP 5 676X
• International 5676X / E5676X

Cross-reference numbers are provided for identification purposes. Verify application and dimensions before purchase.

Applications

The Spicer 5-676X is used in various heavy-duty truck and commercial vehicle driveshaft applications utilizing an 1810 Series half-round yoke. It is also used in certain Spicer driveshaft assemblies and short-coupled driveshaft configurations.

Important: Universal joints can vary by driveshaft configuration. Confirm the existing U-joint dimensions, cap style, and yoke design before ordering.
