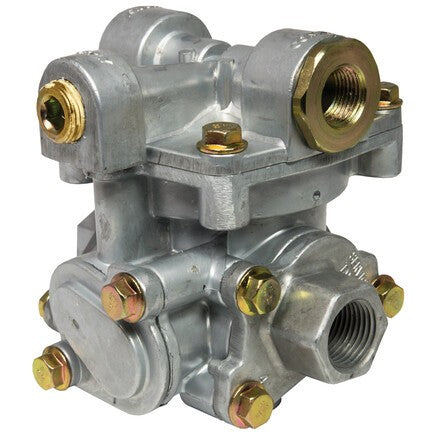

Tectran TV26000 MD Trailer Spring Brake Valve, 55 PSI PPV, Plugged Supply Port – KN26000 Replacement
2 in stock
The Tectran TV26000 is an MD-style trailer spring brake valve designed for reliable control of trailer spring brake systems. This valve features a 55 PSI pressure protection valve (PPV) closing pressure, a plugged supply port, and 3/8-inch and 1/2-inch reservoir connections. It is designed as an aftermarket replacement for the KN26000/RT-4 style trailer valve.
| Specification | Details |
|---|---|
| Brand | Tectran |
| Part Number | TV26000 |
| Product Type | Trailer Spring Brake Valve |
| Valve Model | MD |
| PPV Closing Pressure | 55 PSI |
| Supply Port | Plugged |
| Reservoir Ports | 1/2" and 3/8" |
| Other Ports | 3/8" |
| Service/Control Port | 3/8" with brass adapter |
| Application | Trailer Air Brake System |
| Interchange | KN26000 |
| Tectran Stock Code | 14435 |
| UPC | 00827030144357 |
Tectran's catalog lists TV26000 under its Model MD trailer spring brake valves and specifies the 55 PSI PPV closing pressure, plugged supply port, and KN26000 interchange.
Tectran
Haldex / Midland
Other Common Cross-References
Cross-reference databases independently identify Tectran TV26000 with KN26000 and numerous equivalent aftermarket/OE numbers. Always verify the original valve number and port configuration before ordering.
