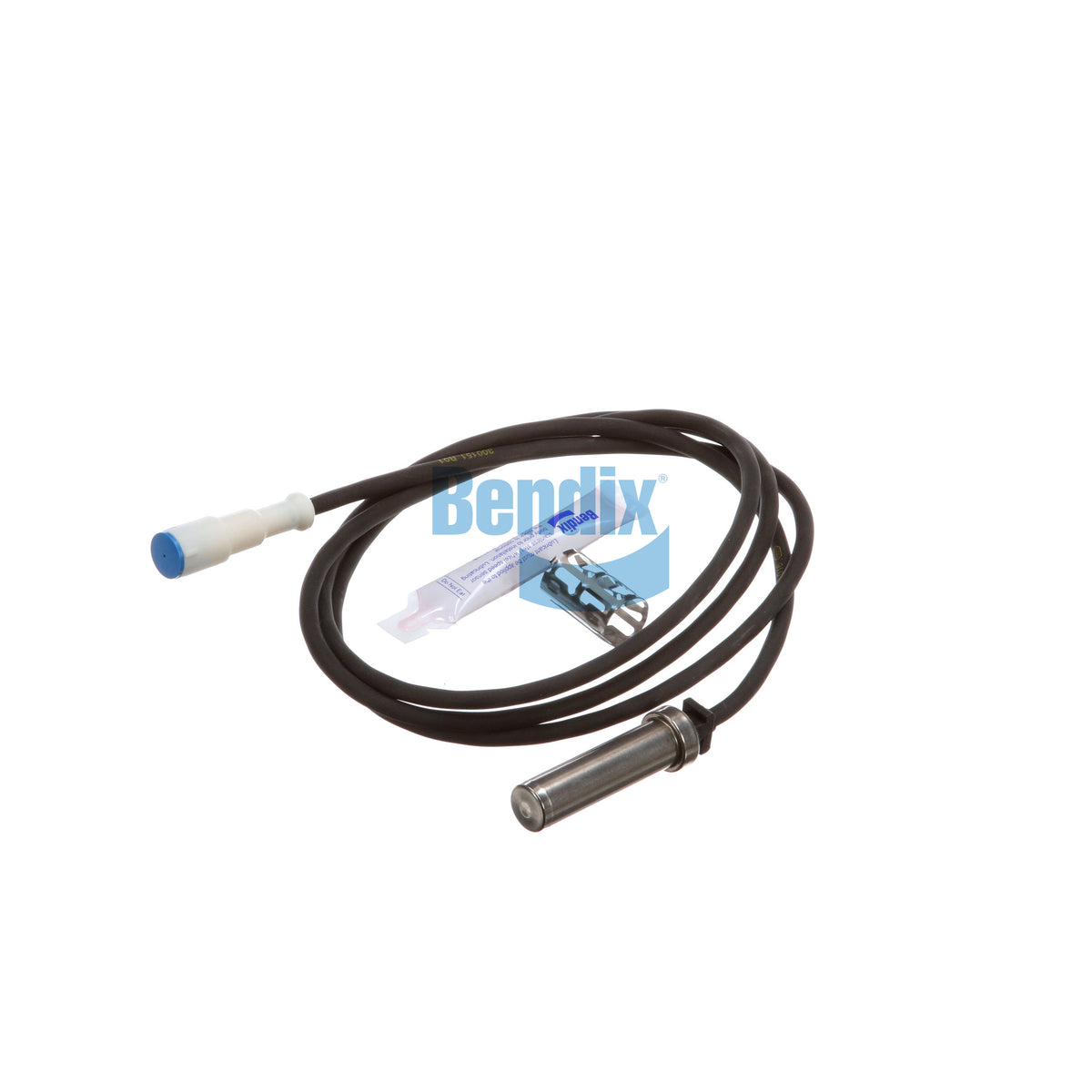

Bendix K181267 WS-24 Wheel Speed Sensor – 66" Straight, 2-Pin DIN Connector
1 in stock
The Bendix K181267 WS-24 Wheel Speed Sensor is a heavy-duty ABS wheel speed sensor designed to provide accurate wheel-speed information to a vehicle's anti-lock braking and traction-control systems.
This straight-style sensor features a 66.4-inch (1,687 mm) harness and a sealed DIN 2-pin barrel connector, making it a direct service replacement for compatible Bendix WS-24 applications. Bendix identifies K181267 as the updated aftermarket service replacement for the earlier 300151, K145016BX, and 801543 applications.
The sensor includes a stainless-steel clamping sleeve and grease for installation. Its IPX9K ingress-protection rating and operating range of -40°F to 320°F (-40°C to 160°C) make it suited for demanding commercial-vehicle environments.
| Specification | Details |
|---|---|
| Manufacturer | Bendix |
| Part Number | K181267 |
| Series | WS-24 |
| Part Type | ABS Wheel Speed Sensor |
| Sensor Position | Straight |
| Harness Length | 66.4" / 1,687 mm |
| Connector Type | DIN 2-Pin Barrel Sealed Connector (Socket) |
| Clamping Sleeve | Included |
| Clamping Sleeve Material | Stainless Steel |
| Grease | Included |
| Grommet | Not Included |
| Ingress Protection | IPX9K |
| Minimum Operating Temperature | -40°F / -40°C |
| Maximum Operating Temperature | 320°F / 160°C |
| Market Indicator | Aftermarket New |
| Country of Origin | Germany |
| UPC / GTIN | 04068078165263 |
| VMRS Code | 013011002 |
| Weight | Approx. 0.44 lb |
Specifications are compiled from current commercial-parts listings and Bendix's WS-24 part-number bulletin.
Bendix:
Bendix/WS-24 predecessor or application references:
Additional aftermarket cross-references found:
Cross-reference lists can vary by supplier, so verify the vehicle/application before ordering.
Bendix's official part-number update identifies K181267 as the new aftermarket service replacement for:
OE: 300151 / K145016BX
Obsolete aftermarket: 801543
New aftermarket: K181267
Cable: 64.4" / 1,687 mm
Type: Straight
The K181267 is intended for heavy-duty commercial vehicle ABS systems where the specified WS-24 straight wheel speed sensor is required.
Because wheel-speed sensors are application-specific, do not rely solely on the vehicle year, make, or model. Compare the existing sensor, connector, cable length, mounting arrangement, and OEM/service part number before installation.
Bendix is a major supplier of commercial-vehicle braking and active-safety components. The K181267 WS-24 provides a service-replacement solution for compatible ABS applications while incorporating the updated clamping sleeve and grease specified by Bendix.
Professional installation is recommended. Before installation, verify:
Important: Always follow the vehicle and ABS system manufacturer's service procedures. An incorrect wheel speed sensor can cause ABS or traction-control faults.
